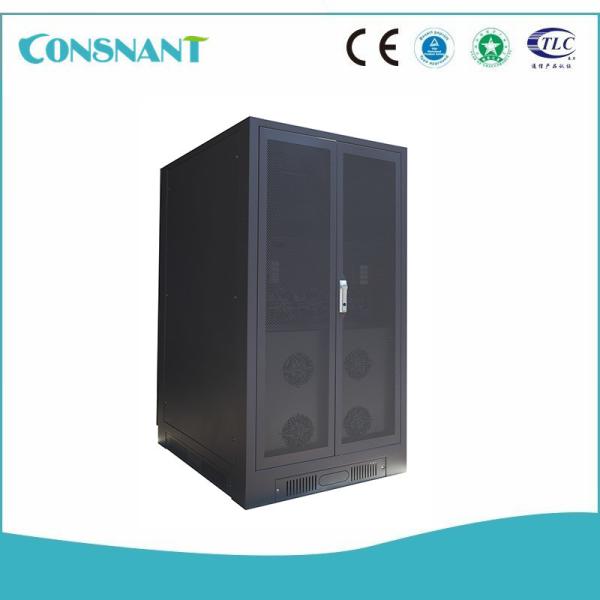

Uninterruotible Backup Power 240Vdc IP20 Lithium Ion Ups PWM

Product Categories
Shenzhen Consnant Technology Co., Ltd.
Contact Now

Uninterruotible Backup Power 240Vdc IP20 Lithium Ion Ups PWM

  • 1
  • 2

Brand Name : CONSNANT

Model Number : SUN SGS-i Series

Certification : CE,ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pieces per month

Delivery Time : 20 days after receiving 30% deposit

Packaging Details : Wooden case

Nominal Voltage : 240Vdc

Frequency : 50/60Hz

IP level : IP20

Phase : 1phase

Contact Now



Single phase off grid inverter

  • Single phase inverter technology with output transformer
  • Include PWM with MPPT charge controller
  • Provide uninterruptible backup power to load when utility grid line is not available
  • High efficiency > 90%
  • Generator connected signal and automatic start generator signal when generator as other energy source of the system
  • Transfer time 4-10ms inverter to utility
  • Special design for using at high grid fluctuation area
  • ISO9001 and ISO14001 certified factory



Off grid single phase inverter-converted.pptx

Applications:

  • Hospital
  • Factory
  • Hotel
  • Island


Technical parameter:

ModelCNS115-10CNS115-15CNS115-20CNS115-25CNS115-30CNS115-40CNS115-50
INVERTERPower10kw15kw20kw25kw30kw40kw50kw
Battery Storage100 - 200Ah150 - 300Ah200 - 400Ah250 - 500Ah300 - 600Ah350 - 750Ah450 - 900Ah
PV System10 - 12kwp15 - 17kwp20 - 25kwp25 - 30kwp30 - 35kwp35 - 40kwp45 - 50kwp
Generator10kw15kw20kw25kw30kw40kw50kw
Electrical Grid10kw / 45A15kw / 68A20kw / 90A25kw / 115A30kw / 136A40kw / 160A50kw / 227A
MPPT Solar Controller240VDC50A70A100A100A150A180A200A
BATTERY VOLTAGENormal Voltage240 Vdc
Voltage Range210 - 290 Vdc
Max . AC Charging Current40A60A75A90A112A130A200A
Maximum Battery current42A63A85A105A125A145A210A
AC CHARGEVoltage Charge250 - 290 Vdc
Charging Current ( Max .)20Adc30Adc40Adc50Adc60Adc75Adc100Adc
AC INPUT GRID LINEGenerator Power10kw15kw20kwnonenonenonenone
VoltageL - N : 220 / 230 / 240 Vac +/ - 10 %
GENERATORPhase1Phase 2Wire + PE
Frequency50 / 60 Hz ± 3 %
Function start / stopRelay dry contact 10A ( ACC on and start )
Power Continuous ( PF = 1 )10kw15kw20kw25kw30kw40kw50kw
AC OUTPUTOutput VoltageL - N : 220 / 230 / 240 Vac 1Phase 2Wire + PE
Voltage Regulation+/ - 5 % steady load .< 4 % step load within 0 . 1sec
Frequency50 / 60 Hz ± 0 . 1 %
Total Harmonic DistortionTHD < 3 % ( linear load )
Wave FormPure sine wave
Overload Capability> 125 % load for 10 min , 150 % load for 30sec ,> 150 % load for 10sec , 200 % load at 2sec
ISOLATIONTypeGalvanic isolation
EFFICIENCYIvnerter Peak ( Max .)> 90 %
PROTECTIONSystemOver current , Overload , Over temperature , Short circuit , Over voltage , Under voltage , Low battery and Over battery voltage
IP levelIP20
ALARMOperation AlarmLow battery , Overload , Over temperature and Fault
COOLINGSystem OperateTemperature control
ENVIRONMENTTenmperature0 - 45 ℃
Relative Humidity0 - 95 %( Non - condensing )
DESIGN REGULATIONTested According toAS / NZ 3100 , EN61000 - 6 - 1 / - 3 , EN50178 and IEC 62040
Dimension WxDxH ( mm .)800*1030*1655 (with built-in MPPT)
PHYSICALWeight ( kg )200250250250300550600
